Tech Tips of Voluson E8 / Voluson E6

The Voluson ultrasound system is designed to keep pace with busy practices – handling routine to complex women's health exams with ease and precision. The premium image quality combined with access to advanced capabilities, delivers the level of performance required by you and your patients.

If there is no image, how should we do?

1. Check the power cord is properly connected

2. Check the video cable is properly connected.

3. Check no pins of the video cable are bent.

4. Check if video is present on backplane.

When the picture is fuzzy, what should we do?

1. Turn ON the power to activate the Auto-Degauss function.

2. Adjust the picture contrast and picture brightness. Some SVGA cards having an excessive video output level will cause a fuzzy picture at the maximum contrast level.

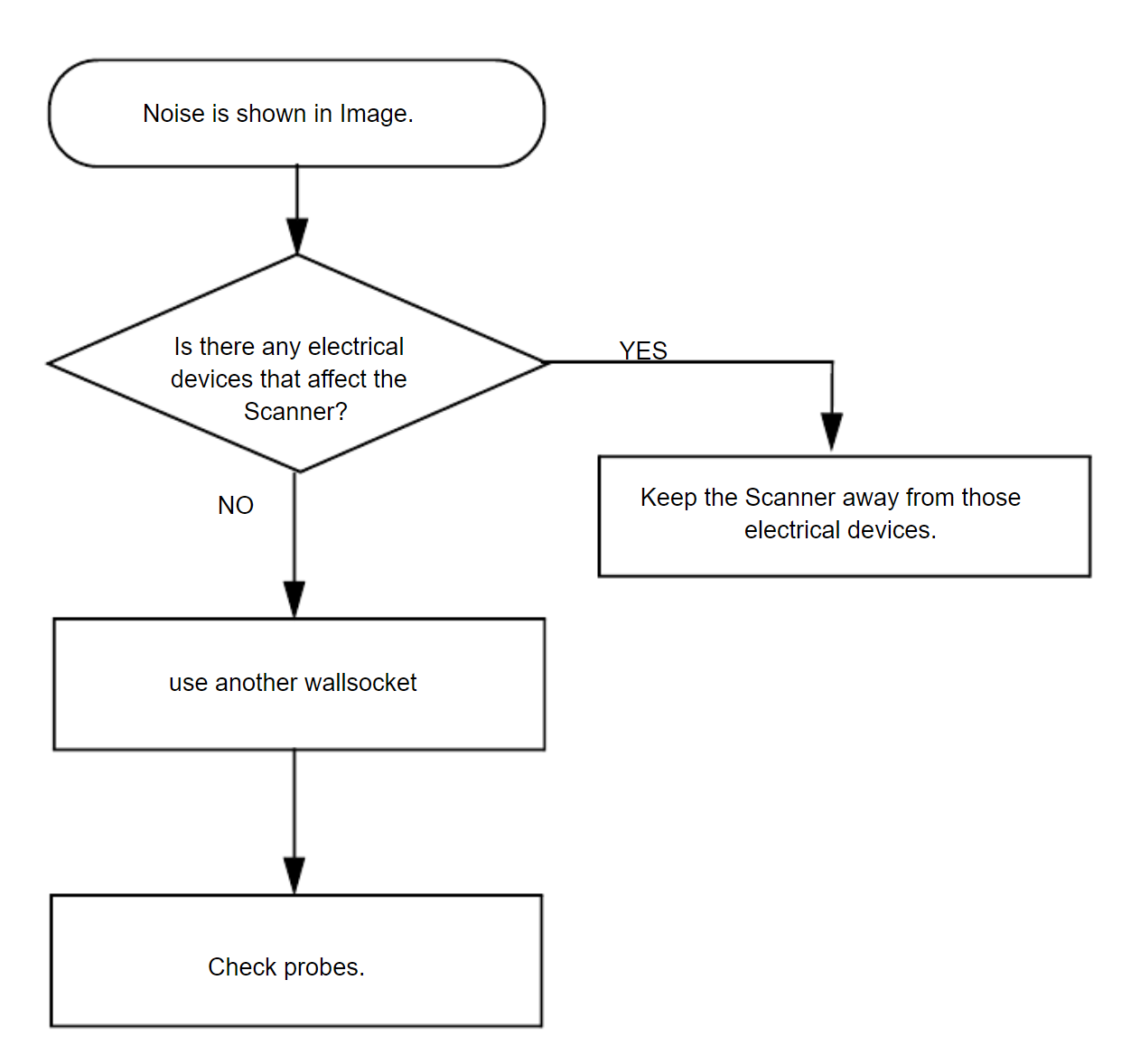

If there is noise disturbs the Image, follow the below steps

No Connection to the Network at All, how should we do?

1.) Check that the network cable between the Voluson E8 / Voluson E6 system and the wall network

is connected and well seated in both ends. (Use a network cable that is known to be OK.)

2.) Connect a network cable between the system and a PC by either using a hub or a cross-over cable.

Try to ping from system to IP address on PC. If OK, hardware connection inside the system is OK.

How to storing sonoview images to Voluson E8 / Voluson E6?

Issue:

Storing SonoView images from Voluson® 730/Expert/Pro/ProV to Voluson E8 / Voluson E6

Cause:

Archive is different (no SonoView on Voluson E8 / Voluson E6)

Solution:

1.) Perform SonoView Backup on Voluson® 730/Expert/Pro/ProV to external hard disk (USB) or DVD

2.) Import File "V730.mdb" from external hard disk (USB) or CD/DVD on Voluson E8 / Voluson E6

Procedure

1.) Connect external hard disk or insert CD/DVD on the Voluson E8 / Voluson E6.

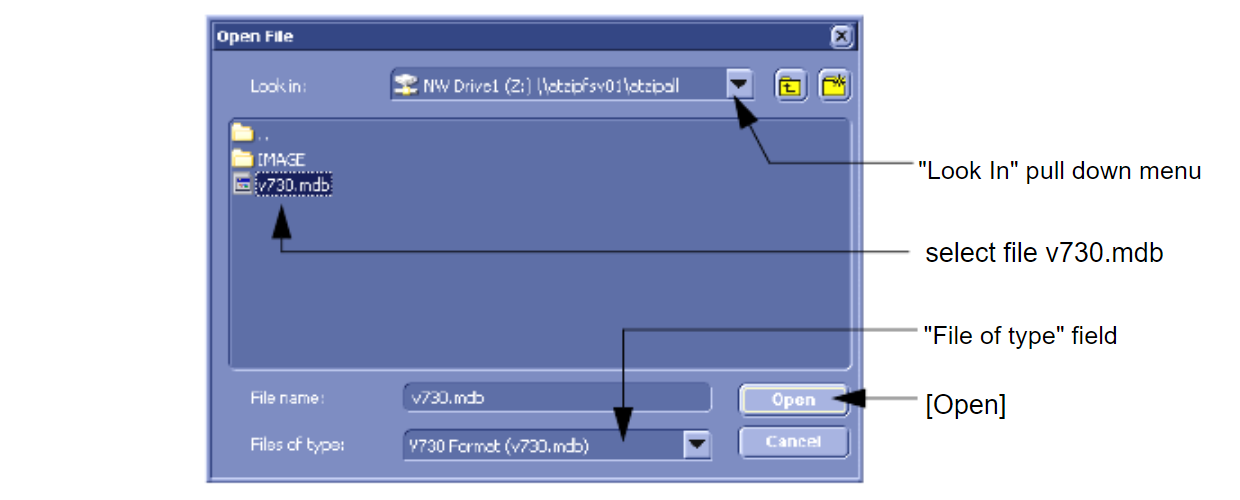

2.) Open Archive --> select "Data Transfer" --> "Import". The "Open File" window appears

3.) Select Drive in the "Look In" pull down menu.

4.) In the "File of type" field change file type to "V730 Format (v730.mdb)".

5.) Browse for the folder where SonoView Backup was stored.

6.) Select file "v730.mdb" and then click OPEN
